Tire balancing weight
With our cutting systems for tire balancing weights, we are setting new standards for the assembly process of complete wheels. Integrated into balancing lines or as a stand-alone device, endless balancing weights from manufacturers such as 3M, Wegmann and many more can be processed.
Balancing weight

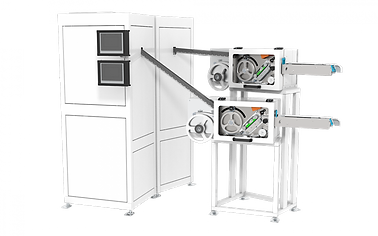

The cutting position for tire balancing weights
Diese Schneidanlage für Reifenwuchtgewichte wurde speziell für die Verarbeitung von Endlos-Wuchtgewichten auf Rolle, sogenannten „Weight Levelwound Rolls“, und Endlossegmentgewichten entwickelt. Die Schneidanlagen sind in unterschiedlichen Versionen verfügbar. Als kompakte Schneidanlage finden die Materialabrollung und die Konfektionierung platzsparend in einem Gerät statt. Für die Integration in Wuchtstraßen wurden spezielle kompakte Einzeleinheiten entwickelt.
Die „Wheel Weight“ Wuchtgewichte auf Rolle sind je nach Typ in Gebinden zwischen 90-120 kg verfügbar. Für eine einfache Nachrüstung in bestehende Wuchtstraßen wurden einzelne Funktionen in kompakte Module unterteilt.
Function modules
Base unit
The base unit serves as a material storage facility. From here, the weight strand is unwound without tension and transferred to other transport units or the cutting unit via roll take-offs. To enable continuous operation, the end of the empty roll can be connected to the beginning of a new roll using an integrated splice unit. The connection point is detected on the cutting unit and cut off separately.
Intermediate transporter
In order to overcome long distances between the material supply in the base station and the assembly unit, intermediate transporters are available, which ensure tension-free material transport even over long distances.

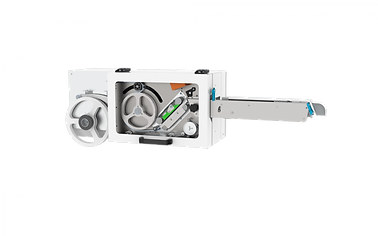

Cutting unit
The required weight is assembled in the cutting unit. The balancing line requests the required weight through direct communication. In the manual version, the worker then removes the requested weight. In the version with a robot transfer station, the weight is transferred directly to a gluing robot.
Highlights and features
Cutting tire balancing weights to the gram
Easy to use
No downtime due to roll changes
High cycle times
Automation in balancing technology
Material feed in any length
The cutting system for tire balancing weights enables the simple automation of a balancing process for car tires that is often still carried out manually. Even in the manual application, incorrect balancing can be avoided, process times reduced and processes optimized. By connecting robots to stick the balancing weight onto the rim, this process can be fully automated. We have already implemented such projects for numerous well-known automobile manufacturers at home and abroad. Contact us.
